Middle Size Automatic Spring Roll Sheet Machine

China Middle Size Automatic Spring Roll Sheet Machine supplier
Middle Size Automatic Spring Roll Sheet Machine supplier Middle Size Automatic Spring Roll Sheet Machine supplier Middle Size Automatic Spring Roll Sheet Machine supplier Middle Size Automatic Spring Roll Sheet Machine supplier

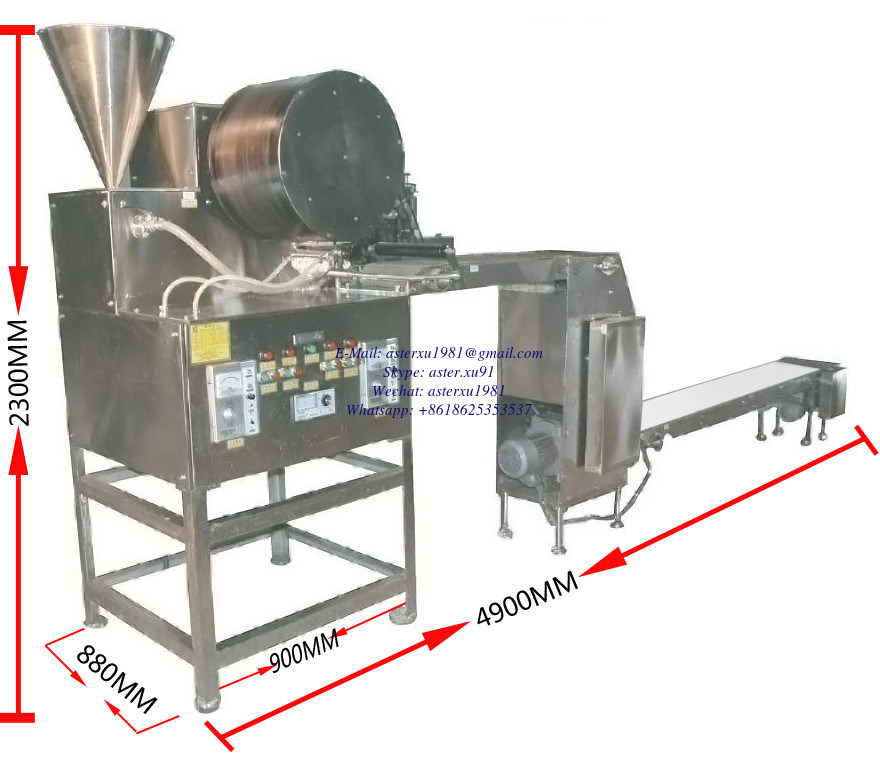

Large Image :  Middle Size Automatic Spring Roll Sheet Machine

Product Details:

Place of Origin: CHINA
Brand Name: TF
Model Number: TF-350

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD$16,282~USD$22,988.00
Packaging Details: Plywood Case
Delivery Time: 5 Working days after checked your deposite
Payment Terms: T/T,L/C or Western Union
Supply Ability: 2 sets each month
Contact Now
Detailed Product Description

Automatic Spring Roll Pastry Machine's Synopsis:

1.The automatic spring roll pastry machine is made of the high quality stainless steel.

2.The spring roll pastry machine adopts some advanced technology, such as spraying paste, heating, counting, colding and folding etc function.

3. Automatic spring roll pastry machine is high capacity with high automatic level.

4. The taste and shape of the pastry that made by our spring roll pastry machine can compare with the ones which made by hand.

5.  Automatic spring roll pastry machine can make round shape pastry and square shape pastry by changing the different forming machine and cutting blade..

6. The thickness, width range and the length range of the square pastry is adjustable.

7. The thickness of the round pastry is adjustable.



Automatic Spring Roll Pastry Machine's Main Technical Parameter:

Heating Drum Diameter

 350MM

Heating Drum Height

 It’s up to the pastry’s width.

 Host Machine Size

 L2200MM xW880MM xH2300MM

Heating Power

 15KW or by Gas 1.1KG

Host Machine Power

 0.35KW

Slicing Motor

 0.2KW

Conveyor Motor

 0.18KW

Voltage

 380v/220v(50/60HZ)

Upper Conveyor Length

 0.95M

Down Conveyor Length

 1.2M

Conveyor Width

 320MM

Beating Machine

 Mixer Power: 1.1kw

 Mixer Speed: 131rev/min

 Mixer Capacity: 25kg/time/15min

Pulp Conveyor Pump Power

 1.5KW

Cooling Fan

 1 ~ 2 Pcs  15W/Pc

Dry Flour Sprayer Device

 1 Pc

Net Weight

 1000KG

Gross Weight

 1200KG

Sheet Width

 MAX 260MM

Sheet Thickness

 0.3-1.0MM

Capacity

 900 ~ 1300Pcs / Hr & 15~30KG/Hr
