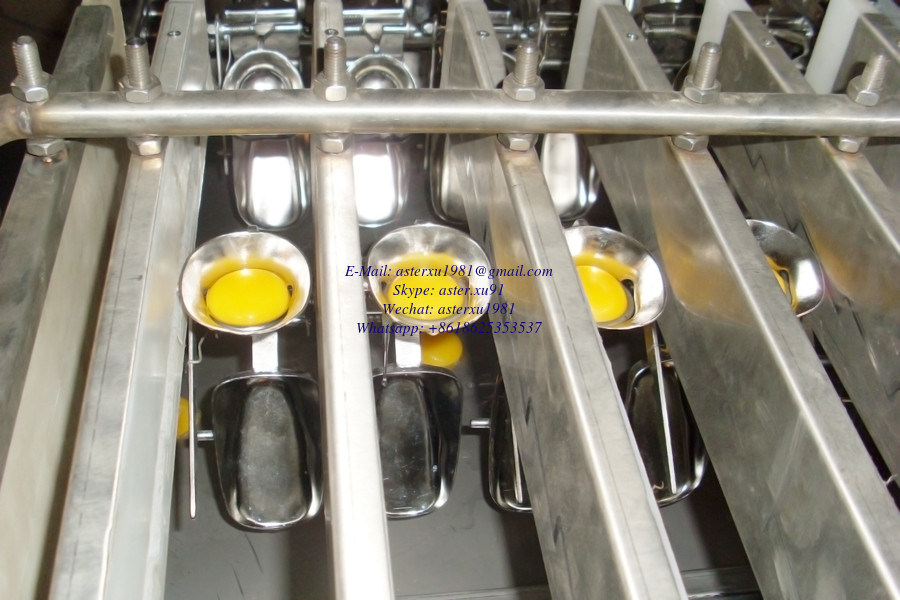

TFE-40000 Spoon Style Egg Fluid Processing Line's Synopsis:
1.The egg breaking machine is made of the stainless steel.
2.The egg processing line is easy to operate and clean.
3.The egg fluid processing machine can separate the albumen fluid and the yolk automatically.
4.The egg breaking machine have the automatic feeding, cleaning, checking,drying,breaking full egg fluid or separating the egg white from the egg yolk etc functions.
5.The egg breaker's speed is adjustable.
6. Except the roller of the egg conveyor and the egg breaker controller is made of the polypropylene, the other parts are made of the 304# stainless steel.
7. Roller isn't the normally plastic, it's made of the polypropylene. It has a high impact resistance, mechanical properties and obdurability. It can against a variety of organic solvents and acid corrosion.It's one of the usual common polymer materials and widely used in industry and food machinery manufacturing. A kind of the foodmachine-specific material.
TFE-40000 Spoon Style Egg Fluid Processing Machine's Main Technical Parameters:
Model: TFE- 40000
Voltage:220V/3Phases & 380V/3Phases
Main Drive Motor: 1.5KW
Light Detector :35W X 12Pcs=420W
Egg Dryer & Blower:120W X 4Pcs=480W
Heating Pipe: 6KW X 2 group = 12KW
Brush Cleaner: 0.37KW
Electrical control box component: Frequency Converter, Breaker and Electrical relay etc.
Body part is made of the 304# stainless steel.
Conveyor belt material: Polypropylene and 304# Stainless Steel
Egg Uploader Length: 2200MM
Conveyor Length which between the Egg Uploader and the Egg Washer : 300MM
Egg Washer( with the circulating water tank) Length: 2800MM
Conveyor Length which is used to connect the Egg Washer and the Egg Blower or Egg Dryer: 300MM
Egg Conveyor Length: L 1300MM
Conveyor Length which is used to connect the Egg Light Detector and the Egg Breaker: 200MM
Egg Breaker's Size: L1200MM X W1550MM X H1650MM
Egg Fluid Track Length: 4500MM
So the TFE-12800 Track Way Egg Fluid Processing Machine's totally dimension: Egg Uploader + Conveyor +Egg Breaker + Egg Fluid Track + Egg Washer = L 12100MM X W1550MM X H1650MM
Packing Size: 4 Pcs plywood case, each plywood case size is about 4.2M³, so the totally packing size is about 16.8M³.
Net Weight: 2700KG
Packing Weight: 3200KG
Hen Egg's diameter range is from the 30mm to 45mm, the length is from 50mm to 60mm.
Cracking heads mounted: 80Pcs
We also can make the egg fluid machine customed.
