Automatic Noodle Machine Automatic PLC Version Ramen Machine Ramen Maker

Operation Method of the Automatic Noodle Machine:

1.Connecting the Automatic Noodle Machine with the power and don't forget to connect the earth line at the back of the noodle machine.

2.Pouring the dry flour into the flour feeding hopper of the Automatic PLC Version Noodle Machine.

3.Feeding the water into the water tank of the Automatic Ramen Machine, if you want the dry flour mix with the salt water, you can add a little salt into the water tank to make the water which in the water tank are salt water.

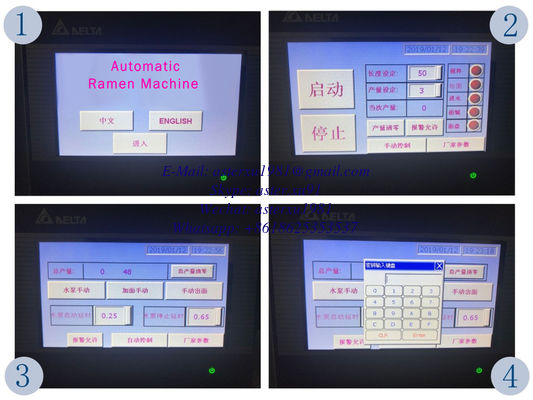

4.You can choose the language of the PLC version at the first, then you can choose the working method is by manual or automatic. The cutting length and quantity are can be setted. PLC version Automatic Ramen Machine do the flour mixing, kneading the dough,pressing the dough and cutting the ramen by itself. So one staff can work with it easily.

5. Besides that, the automatic Ramen machine can make the ramen with different humidity.

6. Noodle blade is easy to be exchanged.

7. Automatic Ramen Machine is most suitable for the shop which lack labor.

8. The elastic noodle is made by the high-speed screw rotation of the mixing cylinder with the surface system of the rough rolling drum to knead the dough surface 1000 times as by hands, so the ramen pressed by the automatic ramen machine is full of elastic and yummy.

9. It has the counting function.

Technicial Parameters of the Automatic Ramen Machine:

Size of the Noodle Blade: 1.5MM/2.5MM/3.0 MM/4.0MM/10MM

Pastry Capacity: 100KG/ Hr

Noodle Capacity: 200Batches/Hr (Each batch is adjustable from 110g~280g)

Power: 1.1KW

Voltage: 220V/110V

Overall Dimension: L671MM X D751MM X H1781MM

Machine Weight: 197KG

Video Link:https://youtu.be/aKhkOzQun40 & https://youtu.be/oUwqMmhziGc
